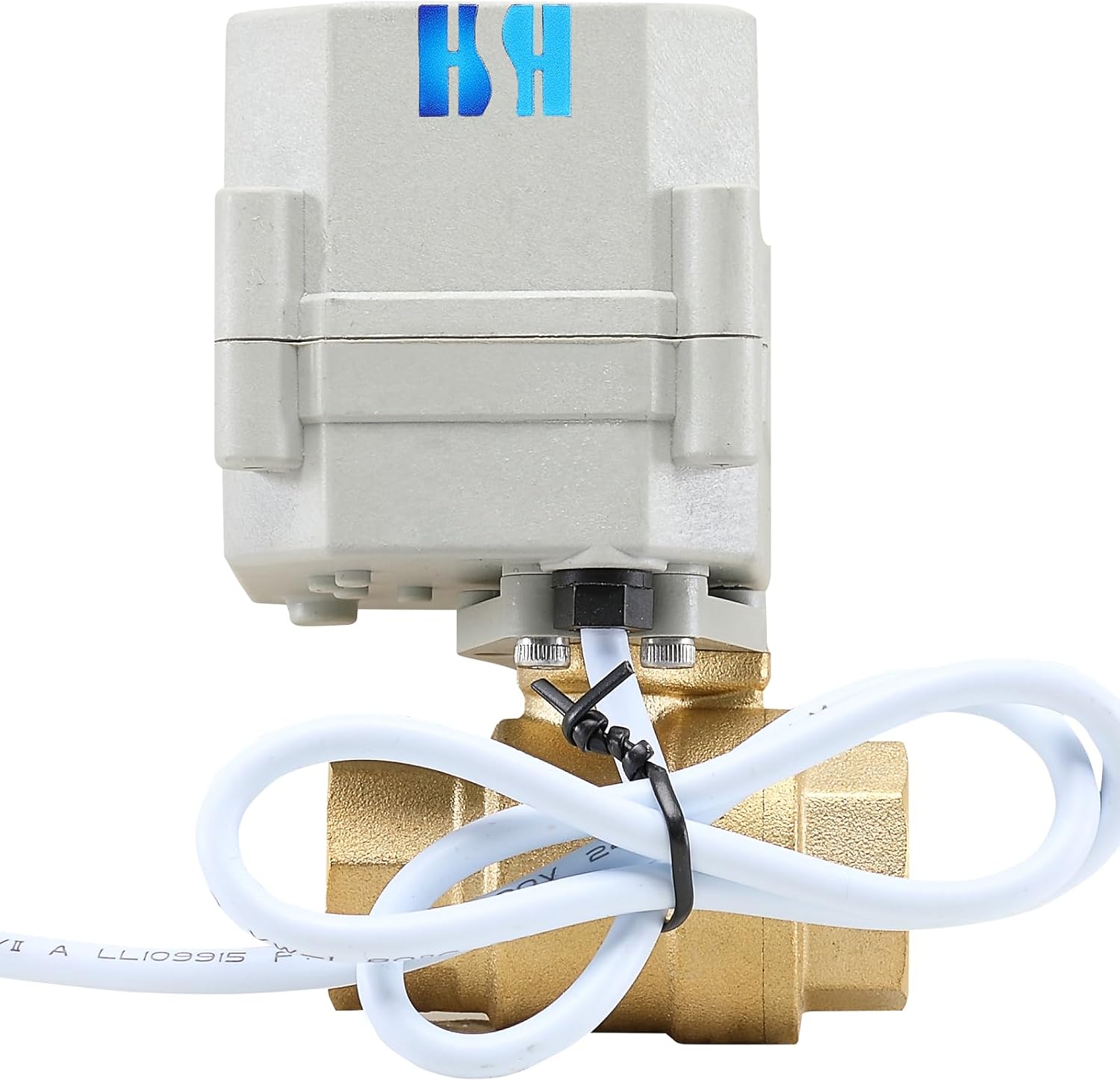

2 Way 1/2" 12VDC 9-24VDC 0-10V NPT Proportional Integral Modulating Control Motorized Ball Valve
Product details
| Management number | 221426425 | Release Date | 2026/05/03 | List Price | US$33.60 | Model Number | 221426425 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Technical Parameters◎Valve Body Diameter: 1/2 inch NPT;◎Valve Body Material: Brass;◎Actuator Material: Engineering Plastics;◎Sealing Material: FKM & PTFE;◎Working Voltage: 9-24VDC;◎Control Signal: 0-10V;◎Working Current: ≤500mA;◎Working Medium: Fluid, Air;◎Working Pressure: Max 1.0MPa;◎Switching Time: ≤7s;◎Locked-rotor Delay Time: 2s - 4s;◎Position: Any Position (0% ~ 100% is ok);◎Life Time: 70000 times (Testing pressure is 0.4MPa, medium is water);◎Actuator Rotation Angle: 90°;◎Torque Force: 4N.m;◎Cable Length: 0.5m ;◎Environment Temperature: -15℃ ~ 50℃;◎Liquide Temperature: 2℃ ~ 90℃;◎Switch Indicator: YES;◎Manual Override: NO;◎Protection Class: IP67;Application◎HVAC;◎Water Treatment;◎Chemical Process;◎Air Compressor Drainage;◎Automatic Control System;◎Solar Hot Water Engineering;◎Watering Flowers, Regular Humidification;◎Air Conditioning Automatically Humidifies;◎Automatic Control Of Small Industrial Equipment;◎Environmental Protection, Efficient Water-saving;◎Replace Solenoid Valve (Especially when solenoid valve cannot work reliably);

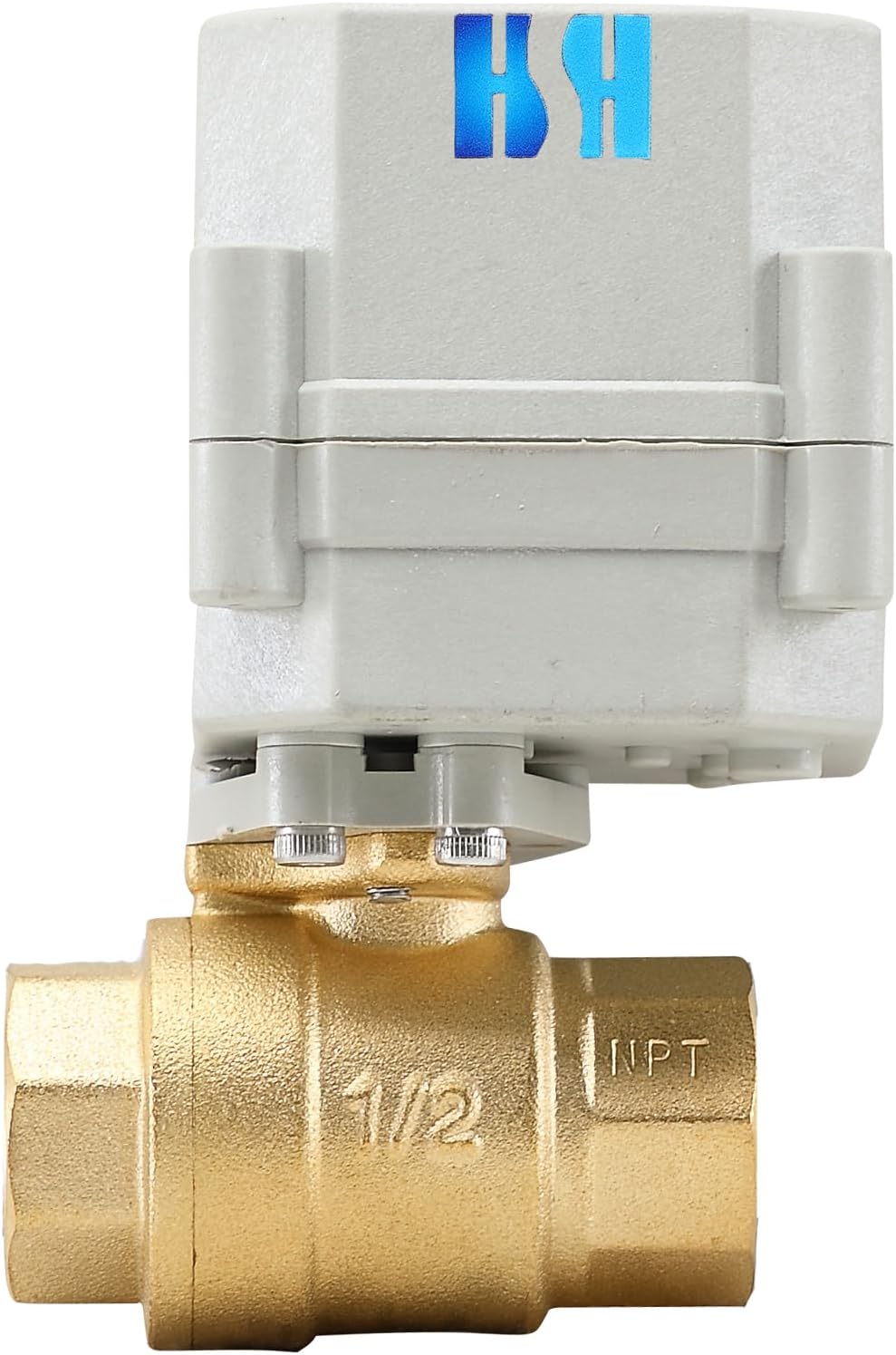

- 1/2" 15mm Full Bore Valve Brass Body;
- 4N.M Proportional Control Actuator With Indicator;
- Erro Ouput Signal Wires Installed,Indicate Problem More Intuitively;
- 0-10V Control Signal,Percentage Open Accordance With Your Need;
- Wide Range Working Voltage Design, From 9-24VDC (Include 12VDC);
| UPC | 753593912389 |
|---|---|
| Size | 2.56 x 2.24 x 3.94 inches |
| Brand Name | HSH-Flo |
| Unit Count | 1.0 Count |
| Valve Type | Ball Valve |
| Thread Size | 1/2 inch |
| Thread Type | NPT |
| Manufacturer | SuZhou HSH-Flo Equipments Co.,Ltd |
| Model Number | 1/2 inch |
| Material Type | Stainless Steel |
| Connector Type | Threaded |
| Item Type Name | Proportional Integral Control Ball Valve |
| Exterior Finish | Brass |
| Item Dimensions | 2.24 x 2.56 x 3.94 inches |
| Number of Ports | 2 |
| Maximum Pressure | 145 Pound per Square Inch |
| Specification Met | CE |
| Included Components | Actuator, Valve Body |
| Inlet Connection Size | 1/2 Inches |
| Inlet Connection Type | National Pipe Tapered |
| Outlet Connection Size | 1/2 Inches |
| Outlet Connection Type | NPT Thread |
| Manufacturer Part Number | HSH-Flo |
